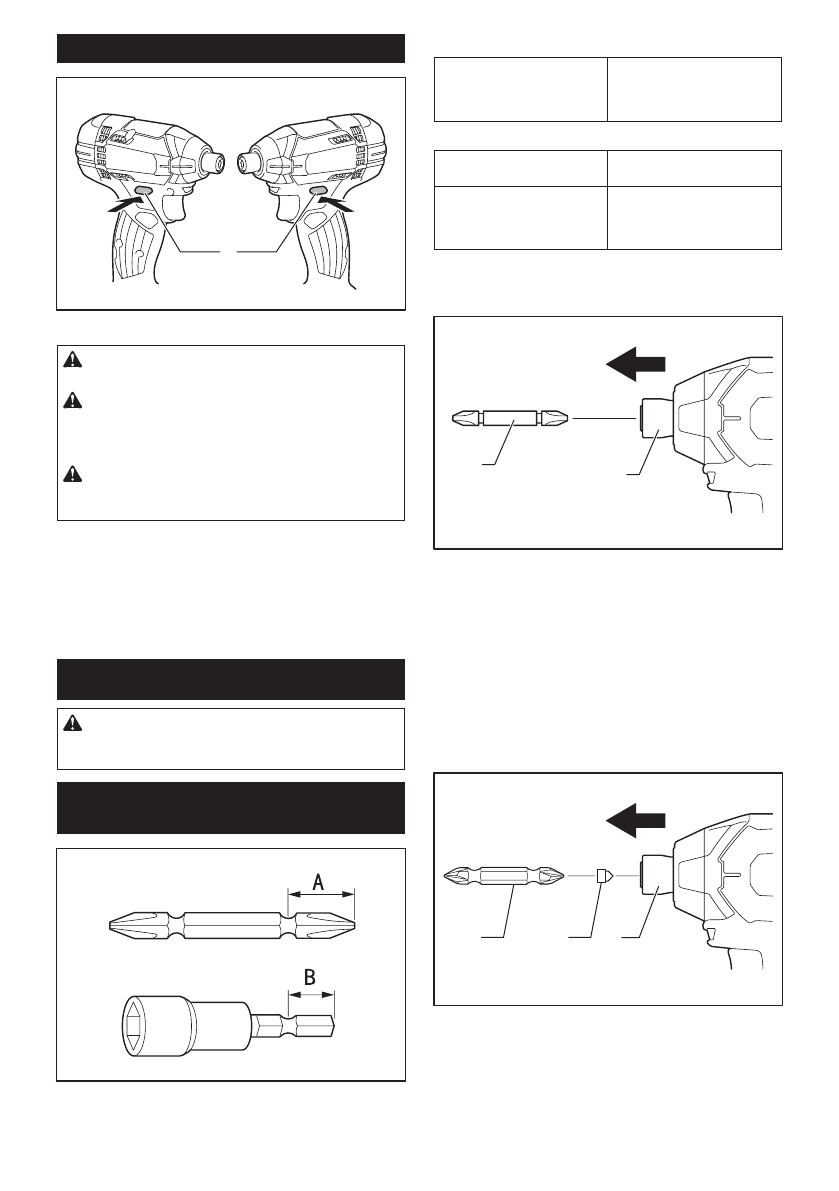

6 ENGLISH

Reversing switch action

1

A

B

1. Reversing switch lever

CAUTION:

Always check the direction of rota-

tion before operation.

CAUTION:

Use the reversing switch only after

the tool comes to a complete stop.

 Changing the

direction of rotation before the tool stops may dam-

age the tool.

CAUTION:

When not operating the tool, always

set the reversing switch lever to the neutral

position.

This tool has a reversing switch to change the direction

of rotation. Depress the reversing switch lever from the

A side for clockwise rotation or from the B side for coun

-

terclockwise rotation.

When the reversing switch lever is in the neutral posi

-

tion, the switch trigger cannot be pulled.

ASSEMBLY

CAUTION:

Always be sure that the tool is

switched off and the battery cartridge is removed

before carrying out any work on the tool.

Installing or removing driver bit/

socket bit

Use only driver bit/socket bit that has inserting portion

shown in the figure. Do not use any other driver bit/

socket bit.

For tool with shallow driver bit hole

A=12mm

B=9mm

Use only these type of driver

bit. Follow the procedure

1. (Note) Bit-piece is not

necessary.

For tool with deep driver bit hole

A=17mm

B=14mm

To install these types of driver

bits, follow the procedure 1.

A=12mm

B=9mm

To install these types of driver

bits, follow the procedure 2.

(Note) Bit-piece is necessary

for installing the bit.

Procedure 1

For tool without one-touch type sleeve

2

1

1. Driver bit    2. Sleeve

To install the driver bit, pull the sleeve in the direction of

the arrow and insert the driver bit into the sleeve as far

as it will go.

Then release the sleeve to secure the driver bit.

For tool with one-touch type sleeve

To install the driver bit, insert the driver bit into the

sleeve as far as it will go.

Procedure 2

In addition to

Procedure 1

, insert the bit-piece into the

sleeve with its pointed end facing in.

1

2

3

1. Driver bit    2. Bit-piece    3. Sleeve

To remove the driver bit, pull the sleeve in the direction

of the arrow and pull the driver bit out.
