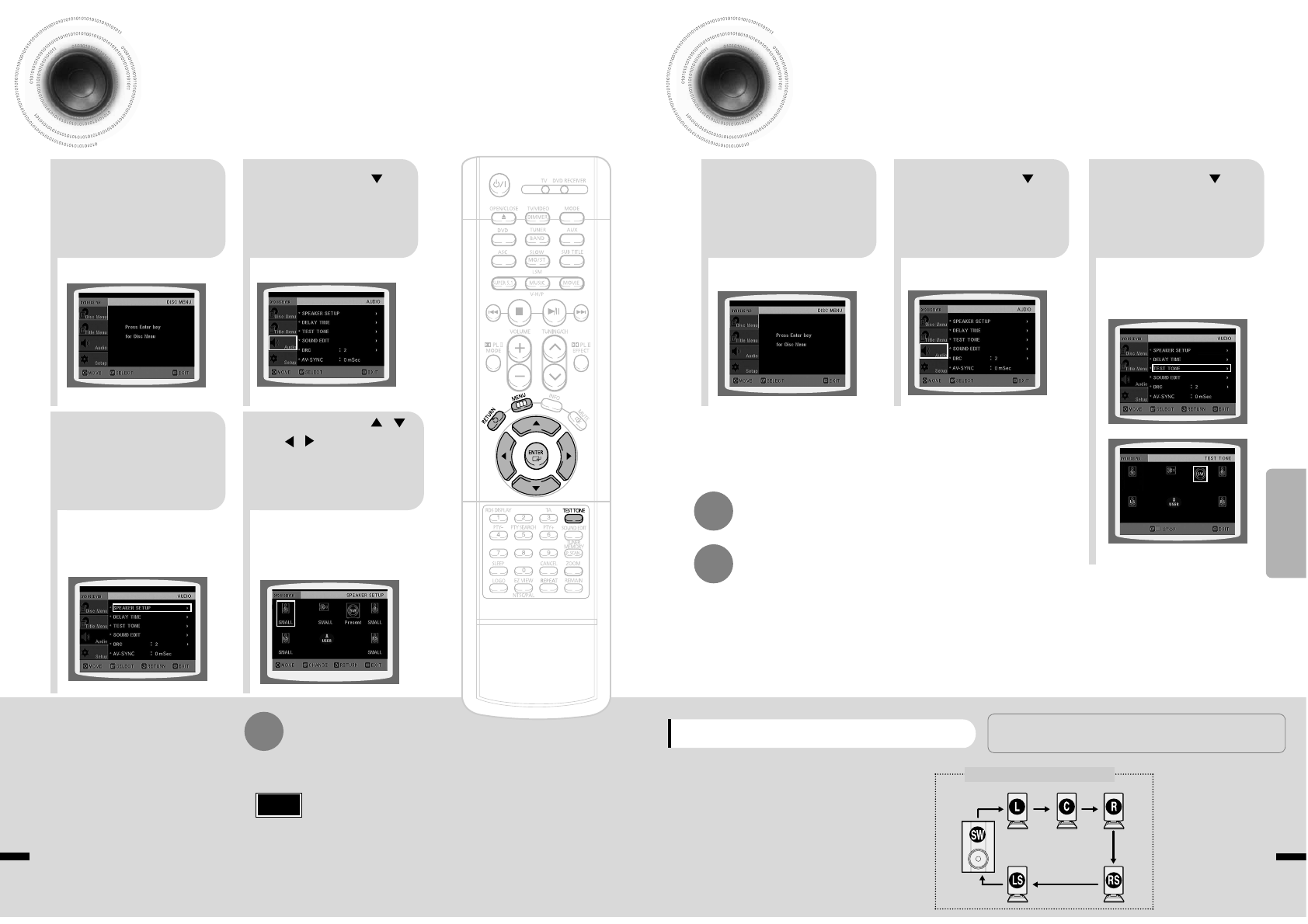

Setting the Speaker Mode

Signal outputs and frequency responses from the speakers will automatically be adjusted
according to your speaker configuration and whether certain speakers are used or not.

Setting the Test Tone

Press the Test Tone to check the speaker connections and to adjust the speaker levels.

In Stop mode,
press MENU
button.

Press Cursor
button to move to
‘Audio’ and then
press ENTER button.

In the Speaker
Setup, press the
ENTER button again.

L: Front Speaker (L)

C: Center Speaker

SW: Subwoofer

R: Front Speaker (R)

LS: Rear Speaker (L)

RS: Rear Speaker (R)

Press Cursor     ,     ,

,    buttons to move

to the desired
speaker and then
press ENTER button.

•

For C, LS, and RS, each time the button
is pressed, the mode switches
alternately as follows: SMALL

➝

NONE.

•

For L and R, the mode is set to SMALL.

Press RETURN button to return to the previous level.

Press MENU button to exit the setup screen.

51

52

SETUP

SMALL : Select this when using the speakers.
NONE : Select this when no speakers are installed.

2

1

In Stop mode,
press MENU
button.

Press Cursor
button to move to
‘Audio’ and then
press ENTER button.

3

Press Cursor      button
to move to ‘TEST
TONE’ and then press
ENTER button.

•

The test tone will be sent to L

➝

C

➝

R

➝

RS

➝

LS

➝

SW in that order.

If the ENTER button is pressed again
at this time, the test tone will stop.

To end the test tone,
press TEST TONE button.

Press TEST TONE button.

•

Test tone will be produced as follows:
When playing a DVD or CD, this will work
only in Stop mode.

•

Use this function to check that each speaker is
correctly connected and that there is no problem.

When manually testing using the TEST TONE button

Multi-Channel Pro Logic Mode

Start

•

Depending on PRO LOGIC and STEREO, the speaker mode may vary.

Note
