05

output

+12 VDC

+5 VDC

+3.3 VDC

Minimum

13

5.5

3.6

Nominal

15

6

4

Maximum

17

7

5

Unit

Volts

Volts

Volts

3.4 Under voltage protection.

In an under voltage fault occurs, the supply will latch all DC outputs into a shutdown state when +12V,
+5V & +3.3V outputs under 85% of it's maximum value.

3.5 Over voltage protection

The over voltage sense circuitry and reference shall reside in packages that are separate and distinct from
the regulator control circuity and reference. No single point fault shall be able to cause a sustained over
voltage condition on any or all outputs. The supply shall provide latch-mode over voltage protection as
defined in Table.

An output short circuit is defined as any output impedance of less than 0.1 ohms. The power supply shall
shut down and latch off for shorting the +3.3 VDC,+5 VDC,or+12 VDC rails to return or any other rail. Shorts
between main output rails and +5VSB shall not cause any damage to the power supply. The power supply
shall either shut down and latch off or fold back for shorting the negative rails.+5VSB must be capable of
being shorted indefinitely, but when the short is removed, the power supply shall recover automatically or by
cycling PS_ON#. The power supply shall be capable of withstanding a continuous short-circuit to the output
without damage or overstress to the unit

3.6 Short circuit

No damage or hazardous condition should occur with all the DC output connectors disconnected from the
load. The power supply may latch into the shutdown state.

3.7 No load operation

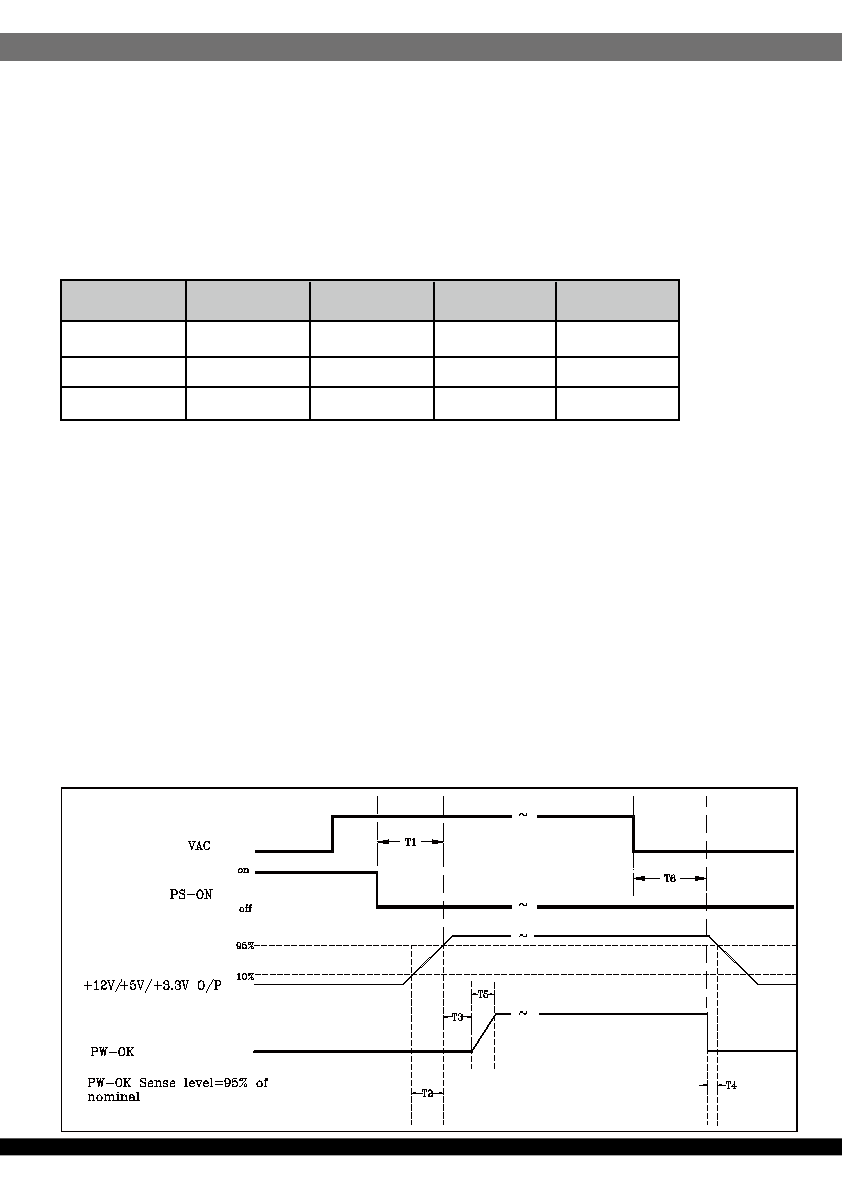

Figure 2. is a reference for signal timing for main power connector signals and rails.

4.1 Signal timing drawing

4. TIMING
