Operation Manual

PS-35

a

b

c

d

e
f

Fig. 1.

А

ctive speaker

6. DESCRIPTION OF CONSTRUCTION

a

Volume control wheel

b

Power LED

c

Rotary mechanism

d

USB: USB port (power supply)

e

AUX:  Audio source input

f

L OUT: Active speaker output

g

Passive speaker input

h

Battery compartment

i

ON/OFF:

POWER switch

j

Battery compartment cover

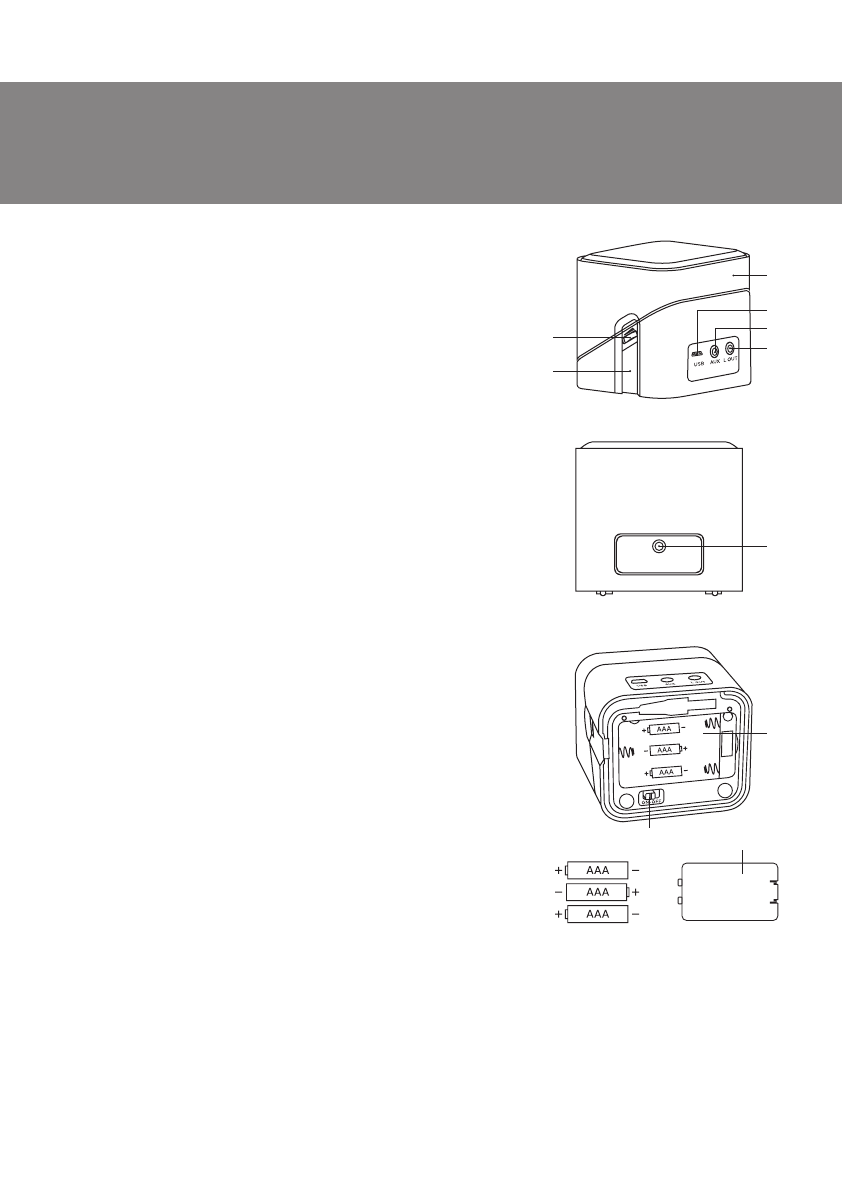

Fig. 2. Passive speaker

Fig. 3. Active speaker

bottom view

7. CONNECTION AND OPERATION GUIDE

SVEN PS-35

Multimedia Speaker System (MSS) can be connec-

ted to a USB-port  on your computer or laptop (see Fig. 4).

•

Connect the speakers to each other using the acoustic cable

as shown in Fig. 4.

•

Insert the mini-jack of the signal cable (included) into active

speaker AUX

f

, and connect the opposite mini-jack of the

signal cable to LINE OUT port of the PC sound card or OUTPUT

of

МР

3/CD-player, as shown in Fig. 4.

•

Plug the USB-cable to the USB-port on your computer or

laptop. (see. Fig. 4).

•

MSS power supply is also possible by using batteries.

Batteries  installation

•

Open the battery compartment (see. Fig. 3).

•

Put in batteries (3 AAA type batteries – not included).

•

Close the battery compartment.

Notes:

• Never use both USB and batteries power supply together.

• Don’t rotate the mechanism of speaker transformation

more than 180°!

•

 Adjust volume level to its minimum by turning the volume

control wheel

a

 counterclockwise until it stops.

•

Shift the ON/OFF slide switch

i

 on the active speaker bottom

panel. Power LED

b

 will illuminate.

•

Switch on the audio source and adjust MSS volume level by

the volume control wheel

a

 or by Windows tools at your

discretion.  While turning the wheel clockwise

a

, volume level

increases, but while turning it counterclockwise, it reduces.

g

h

i

j
