AUDIO INPUT
5. PREPARATION AND OPERATION
Speaker placement
•
Place the speakers symmetrically to the listener at the distance not
less than one meter, speakers can be wall-mounted.
•
The subwoofer emits non-directional sound, therefore it can be
located in any place of the room, where it will sound to the best
advantage.
•
Place MSS far away from monitors and TV sets, as insigni
fi
cant
image distortion in these supersensitive devices is possible.
MSS
с
onnecting and control
MS-960 Multimedia Speaker System can be con-
nected to virtually any audio source: DVD/CD, PC
sound card, etc. (see connection diagram, Fig. 3).
•
Before connecting make sure that the MSS is
switched o
ff
. Then, observing polarity (see Fig. 3),
connect the audio cables
fi
rst to the jacks, and then
into SPEAKERS OUT L/R
i
of the subwoofer. The
positive (red) terminals of the active speaker must be
connected to the red terminals of the passive speaker
(+
→
+), and the negative (black) terminals of the active
speaker must be connected to the black terminals of
the passive speaker (–
→
–).
•
Connect the included 2RCA jacks of the signal cable
to AUDIO INPUT
j
L and R jacks of the subwoofer,
and insert the mini-jack (Ø 3.5 mm) of the signal cable
into LINE OUT port of the PC sound card or OUTPUT
of the DVD/CD/
МР
3-player. To connect the device to
OUTPUT of the DVD/CD/MP3-player or TV, use the
2RCA to mini-jack signal cable (included) + mini-jack
to 2RCA adapter (not included) or 2RCA to 2RCA
signal cable (not included).
Front and rear subwoofer panels
a
VOLUME: master volume control knob
b
TREBLE: TREBLE control knob
c
BASS: BASS control knob
d
BALANCE: BALANCE control knob
e
SUB. VOL: subwoofer volume control knob
f
EARPHONE OUT: headphone jack
g
POWER ON/OFF: POWER switch
h
POWER: POWER LED
i
SPEAKERS OUT L/R: satellite outputs
j
AUDIO INPUT L/R: audio source input
k
Power cord

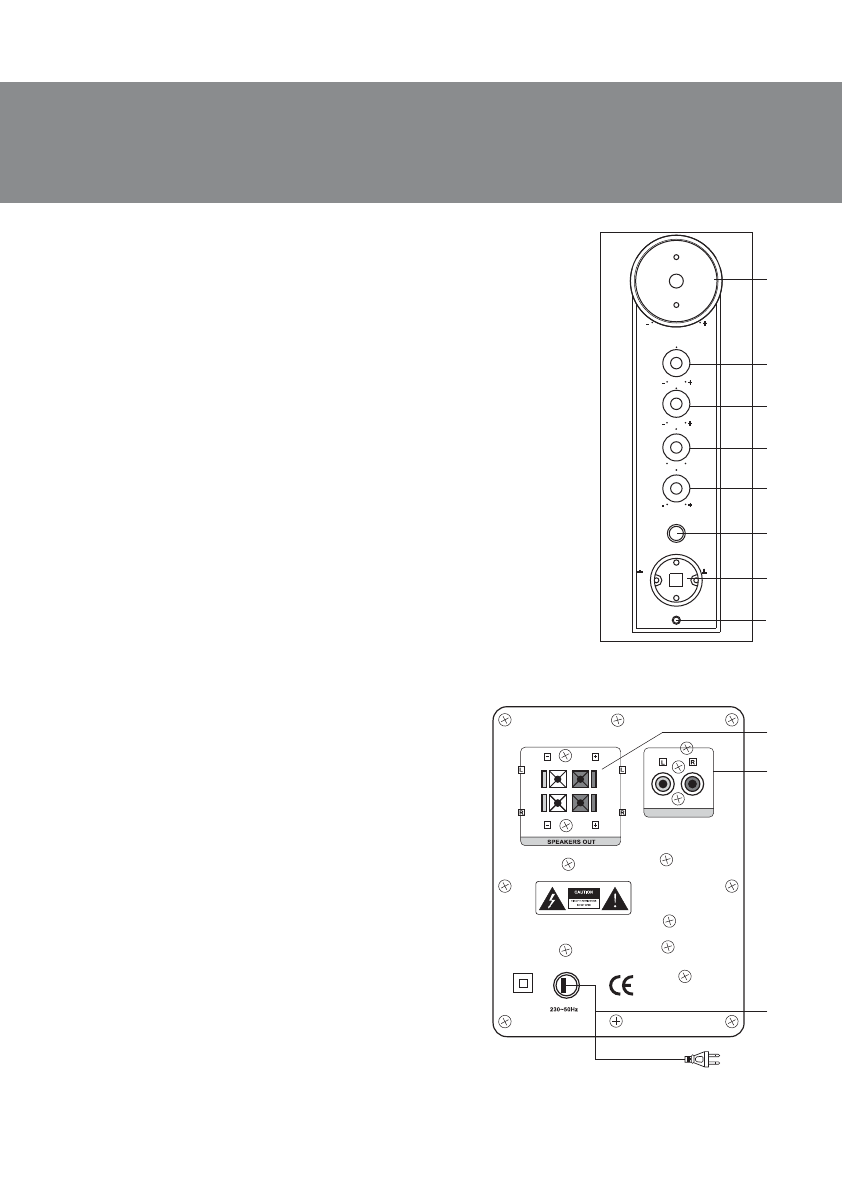

Fig. 1. Subwoofer
front panel
Fig. 2. Subwoofer rear panel
ON
OFF
POWER
EARPHONE OUT
POWER
VOLUME
TREBLE
BASS
BALANCE
L
R
SUB. VOL
a
b
c
d
e
f
g
h
ENG
15
Operation Manual
MS-960
