ENG

1 5

Operation Manual

M S - 9 0 6

a

b

c

d

e

f

5. LOCATING

 Place the speakers symmetrically to the listener at least one meter away.

 The MSS has a bas reflex port on the side panel, therefore it should be installed at the distance of

20-30  cm  from  a  wall  or  other  obstacle.  The    subwoofer  emits  non-directional  sound,  therefore  it
can be located in any place of the room where it sounds the best.

  Place  the  speaker  system  far  away  from  TV  sets,  as  insignificant  image  distortion  in  supersen-

sitive monitors and TV sets is possible.

6. SUBWOOFER REAR PANEL

a

 VOLUME: master volume control knob

b

 BASS: subwoofer volume control knob

c

 AUDIO INPUT: audio source input

d

 AUDIO OUTPUT L/R:  satellite outputs

e

 POWER SOURCE ON/OFF:  POWER switch

f

 Power cord

7. INSTALLATION AND OPERATION GUIDE

MS-906  Multimedia  Speaker  System  can  be
connected  to  virtually  any  audio  source  (see
connection diagram, Fig. 2).

 Before making any connections, make sure that

the MSS is unplugged. Connect the built-in audio
cables to the  AUDIO OUTPUT L/R

d

 jacks on the

rear panel of the subwoofer  (see Fig. 2).

Note  that  the  red  RCA  jack  of  the  right
speaker  should  be  connected  to  the  red  jack
of  the  subwoofer  and  the  white  RCA  jack  of
the  left  speaker  –  to  the  white  jack  of  the
subwoofer

(AUDIO

OUTPUT

R/L).

The

correctness  and  reliability  of  the  cable  con-
nections directly affect the quality of sound.

  The  mini-jack  of  the  stereo  signal  cable  should

be  inserted  into  the  AUDIO  INPUT

c

  jack  of  the  subwoofer,  and  the  other  mini-jack  of  the  cable

should be plugged into a Ø 3.5 mm LINE OUT port of the computer sound card or audio output of a
CD/MP3 player, as shown in the diagram (see Fig. 2).

Note.  To  connect  the  MSS  to  a  DVD/VCD/CD-player  or  a  TV  it  is  necessary  to  use  a  mini-
jack  (Ø  3.5  mm)  to  2RCA  stereo  signal  cable  (not  included)  or  a  mini-jack  (Ø  3.5  mm)  to
2RCA adapter (not included).

 Plug the power cord

f

 on the rear panel of the subwoofer into an outlet.

  Set  the  master  volume  level  to  the  minimum  by  turning  the  VOLUME  control  knob

a

  counter-

clockwise until it stops.

 Switch on the device (

e

, ON position).

•

Turn on the audio source.

  Adjust the master  volume  level by  turning  the  VOLUME  control  knob

a

.  Turn  the  knob  clockwise

to increase the volume level, and turn it counterclockwise to reduce the volume level.

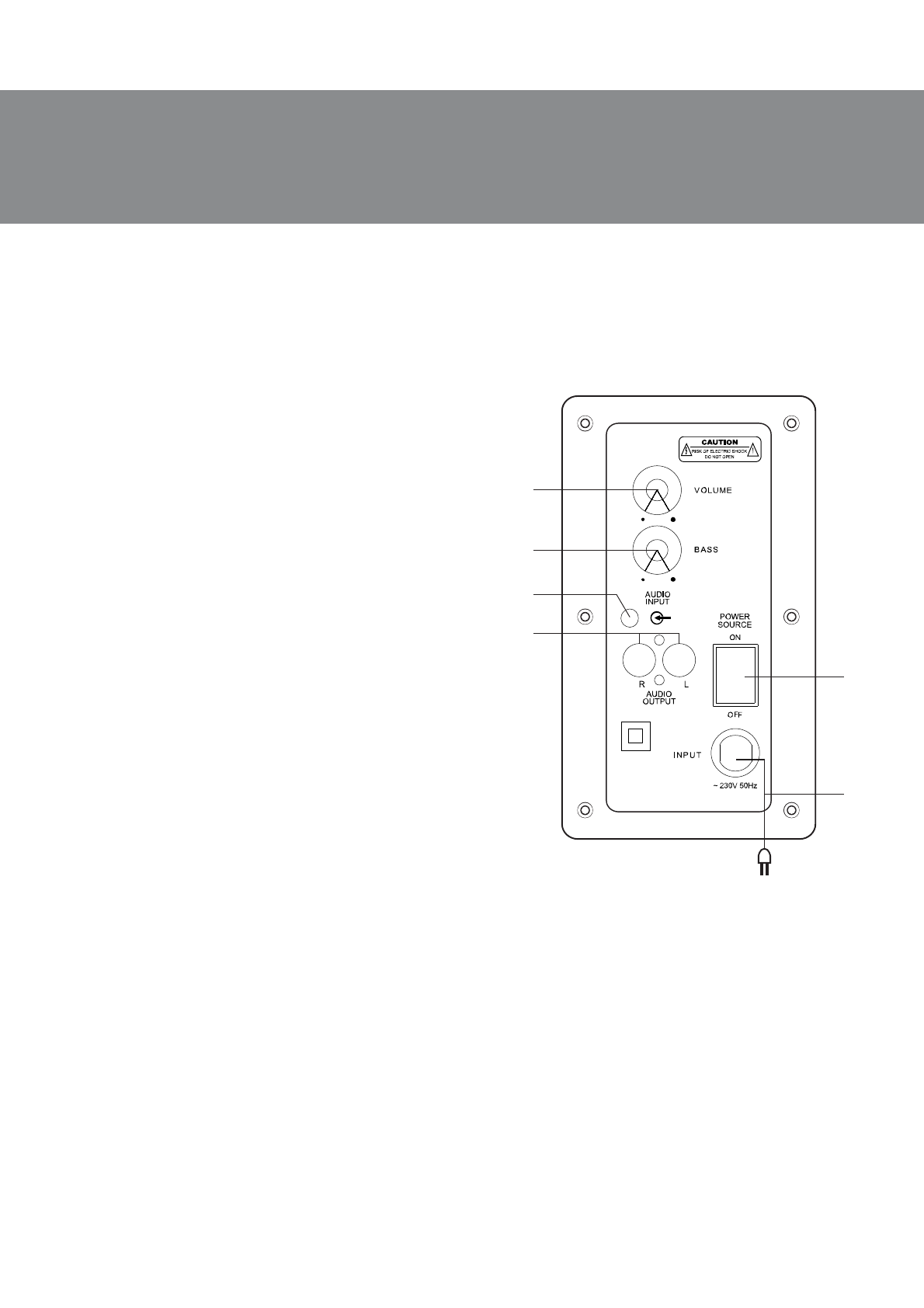

Fig. 1. Subwoofer rear panel
