Operation Manual
MS-905
a
b
c
d
e
f
g
Subwoofer rear panel
a
VOLUME: master volume control knob
b
BASS: subwoofer volume control knob
c
POWER: power LED
d
AUDIO OUTPUT L/R: audio satellite outputs
e
AUDIO INPUT: audio input
f
POWER SOURCE ON/OFF: POWER switch
g
Power cord
5. PREPARATION AND OPERATION
Speaker placement
•
Place the speakers symmetrically to the listener at the
distance not less than one meter.
•
The MSS has a phase inverter on the side panel,
therefore the MSS should be installed at the distance of
20-30 cm from a wall or other obstacle. The subwoofer emits
non-directional sound, therefore it can be located in any
place of the room, where it will sound to the best
advantage.
•
Place MSS far away from monitors and TV sets, as insig-
ni
fi
cant image distortion in these supersensitive devices is
possible
Installation and operation
MS-905 Multimedia Speaker System can be connected to
virtually any audio source (see connection diagram, Fig. 2).
•
Before connecting make sure that the MSS is switched o
ff
. Connect the built-in audio cables to
the audio outputs on the rear panel of subwoofer AUDIO OUTPUT L/R
d
(see. Fig. 2).
Note that the red RCA-jack of the right speaker should be connected to the red terminal of
the subwoofer and the white RCA-jack of the left speaker – to the white terminal of the
subwoofer (AUDIO OUTPUT R/L). The correctness and reliability of the cable connections
directly affect the quality of sound.
•
The mini-jack of the stereo signal cable should be inser- ted into AUDIO INPUT
e
connector of
the subwoofer, and the other mini-jack of the cable should be plugged into a Ø 3.5 mm LINE OUT
port of the computer sound card or audio output of a player, as shown in the diagram (see Fig. 2).
Note. To connect the MSS to a DVD/CD-player or a TV it is necessary to use a mini-jack to
2RCA stereo signal cable (not included) or a mini-jack to 2RCA adapter (not included).
•
Plug the power cord
g
on the rear panel of the subwoofer into an outlet.
•
Adjust volume level to minimum by turning VOLUME control knob
a
counterclockwise until it
stops.
•
Switch on the device (
f
, position ON), power LED
c
lights up.
•
Turn on the audio source.
•
Adjust Master volume level by turning VOLUME control knob
a
. By turning the knob clockwise,
volume level is increased, and by turning the knob counterclockwise, it is reduced.

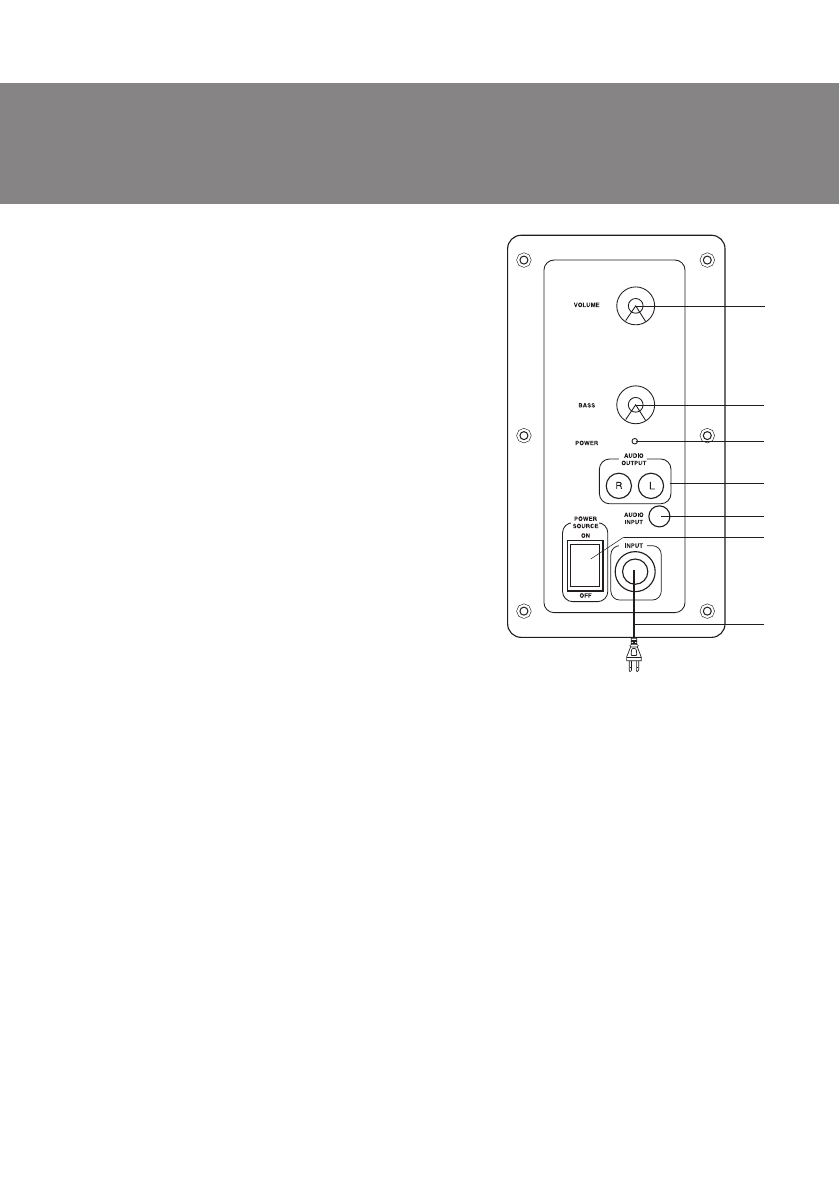

Fig. 1. Subwoofer rear panel
