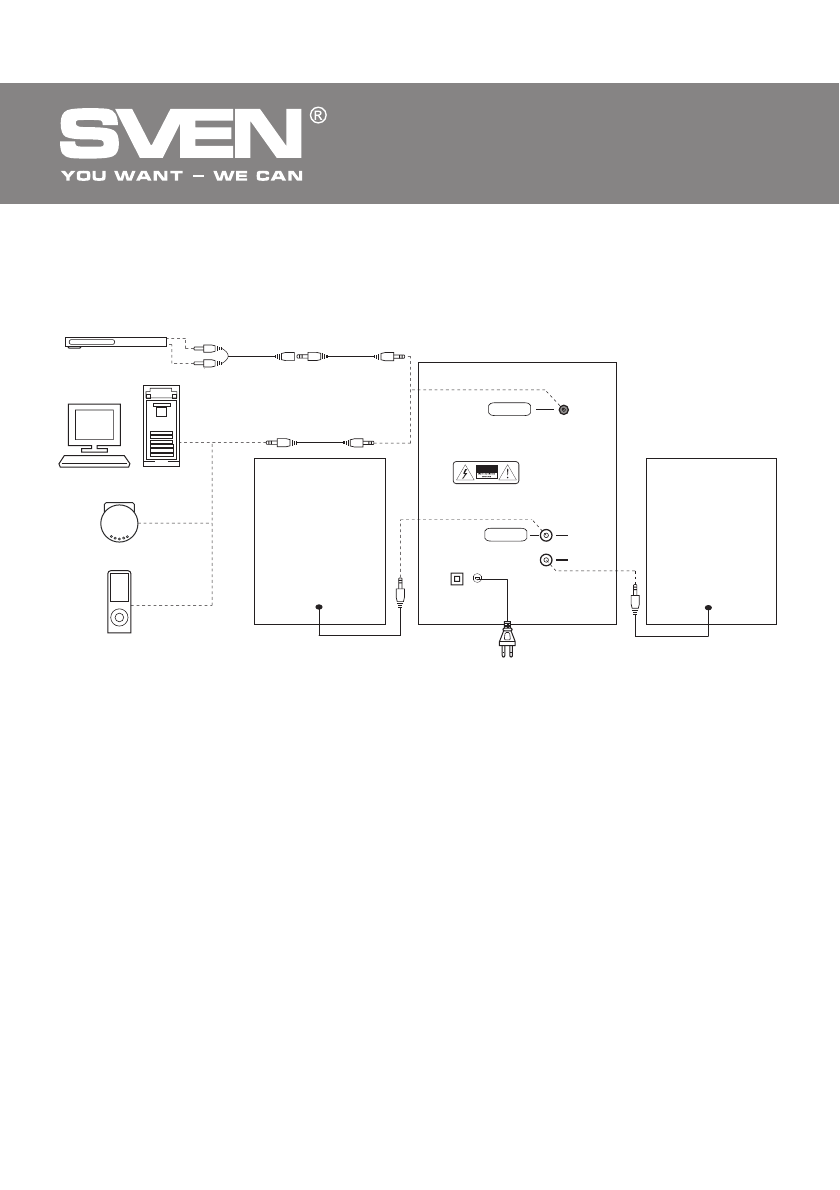

Fig. 3. Connection diagram
Mini-jack to mini-jack
signal cable
Mini-jack to mini-jack
signal cable
Mini-jack to
mini-jack adapter
Installation and operation
MS-321 Multimedia Speaker System can be connected to virtually any audio source: DVD/CD, PC
sound card, etc. (see connection diagram in Fig. 3).
•
Before making any connections, make sure that the MSS is switched o
ff
. Then connect the audio
cables built into the satellites to the OUTPUT jacks of the subwoofer: the left speaker to the LEFT
output
i
, the right speaker to the RIGHT output
j
.
•
Insert the mini-jack (Ø 3.5 mm) of the signal cable (included) into the subwoofer INPUT jack
h
,
then connect it to the LINE OUT port of your PC sound card or output jack of your
МР
3/CD-player
(see diagram above).
Notes:
•
Sound quality is directly affected by correctness and reliability of the connection of
cables. We recommend that you use the cables included in the package contents of the
MSS. Usually, the right channel is marked in red, and the left channel is marked in white.
•
To connect the MSS to a CD/DVD player or a TV, use the included mini-jack to mini-jack
stereo signal cable and mini-jack to 2RCA adapter.
•
Adjust the VOLUME knob
c
on the subwoofer to its minimum, then connect the subwoofer to
a mains outlet via the built-in power cord
l
.
•
Switch on the subwoofer with the POWER switch (
k
, ON position). Then turn on your audio
source and adjust the subwoofer volume level with the VOLUME knob
c
, the bass and treble level
with the BASS knob
b
and TREBLE knob
d
respectively.
•
Headphone volume level is adjusted by turning the PHONES VOLUME knob
e
.
•
After using the MSS, shift the POWER switch
k
into OFF position and unplug the power cord
l
.
