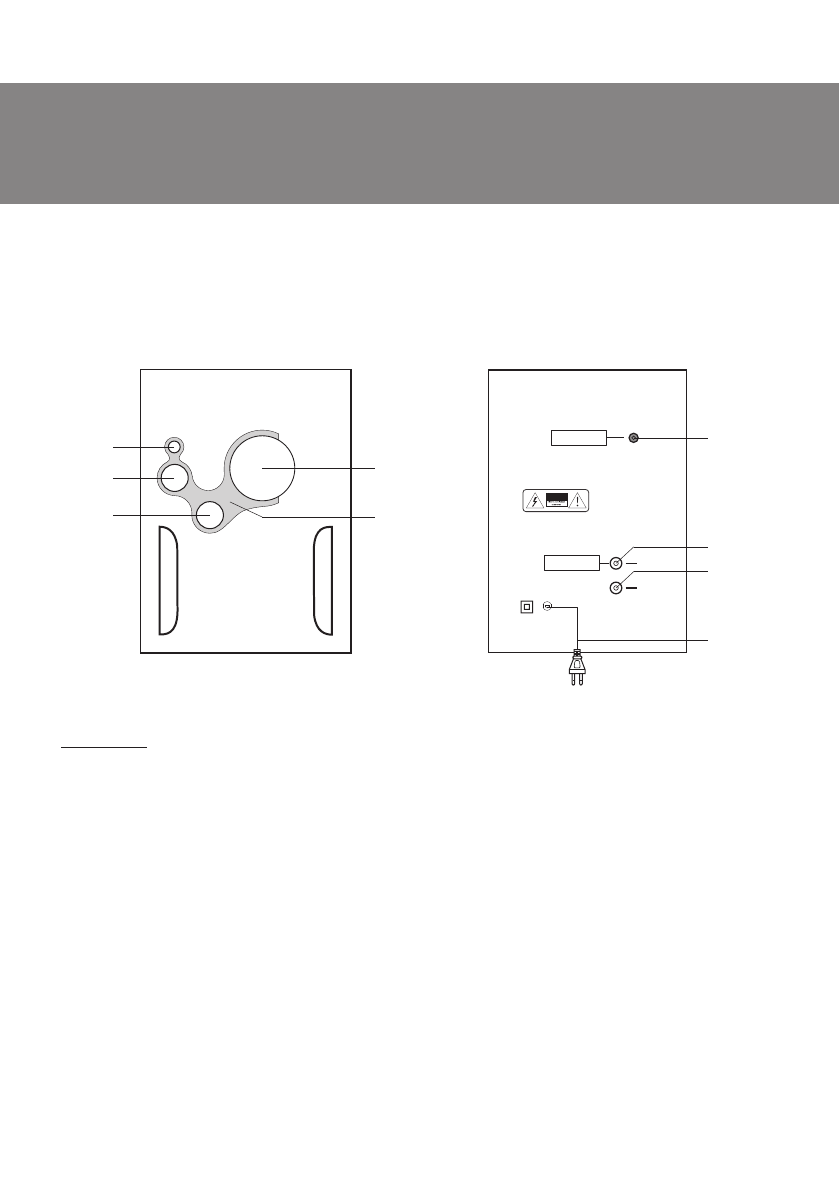

Fig. 1. Subwoofer front panel*

Fig. 2. Subwoofer rear panel

f

 INPUT: audio source input

g

 LEFT: left satellite output

h

 RIGHT: right satellite output

i

 Power cord

Front and rear subwoofer panels

a

 POWER: power switch

b

 BASS: bass control knob

c

 TREBLE: treble control knob

d

 VOLUME: volume control knob

e

 Control panel illumination

* MS-311 Glamour is singled out by its bright design of the front panel.

5. PREPARATION AND OPERATION

Speaker placement

•

 Place the speakers symmetrically to the listener at least one meter away. The subwoofer emits

non-directional sound, therefore it can be located in any place of the roomwhere it sounds the best.

•

 Place MSS far away from monitors and TV sets, as insigni

fi

cant image distortion in these super-

sensitive devices is possible.

MSS

с

onnecting and control

MS-311 and MS-311 Glamour Multimedia Speaker Systems can be connected to virtually any audio

source: DVD/CD, PC sound card, etc. (see connection diagram in Fig. 3).

•

Before making any connections, make sure that the MSS is switched o

ff

. Then connect the audio

cables built into the speakers to the OUTPUT jack of the subwoofer: the left speaker to the LEFT

output

g

, the right speaker to RIGHT output

h

 (see connection diagram in Fig. 3).

•

Insert the mini-jack (Ø 3.5 mm) of the signal cable (included) into the INPUT jack of the

subwoofer

f

, then connect it to the LINE OUT port of your PC sound card or to the output jack of

your

МР

3/CD player (see connection diagram in Fig. 3).
