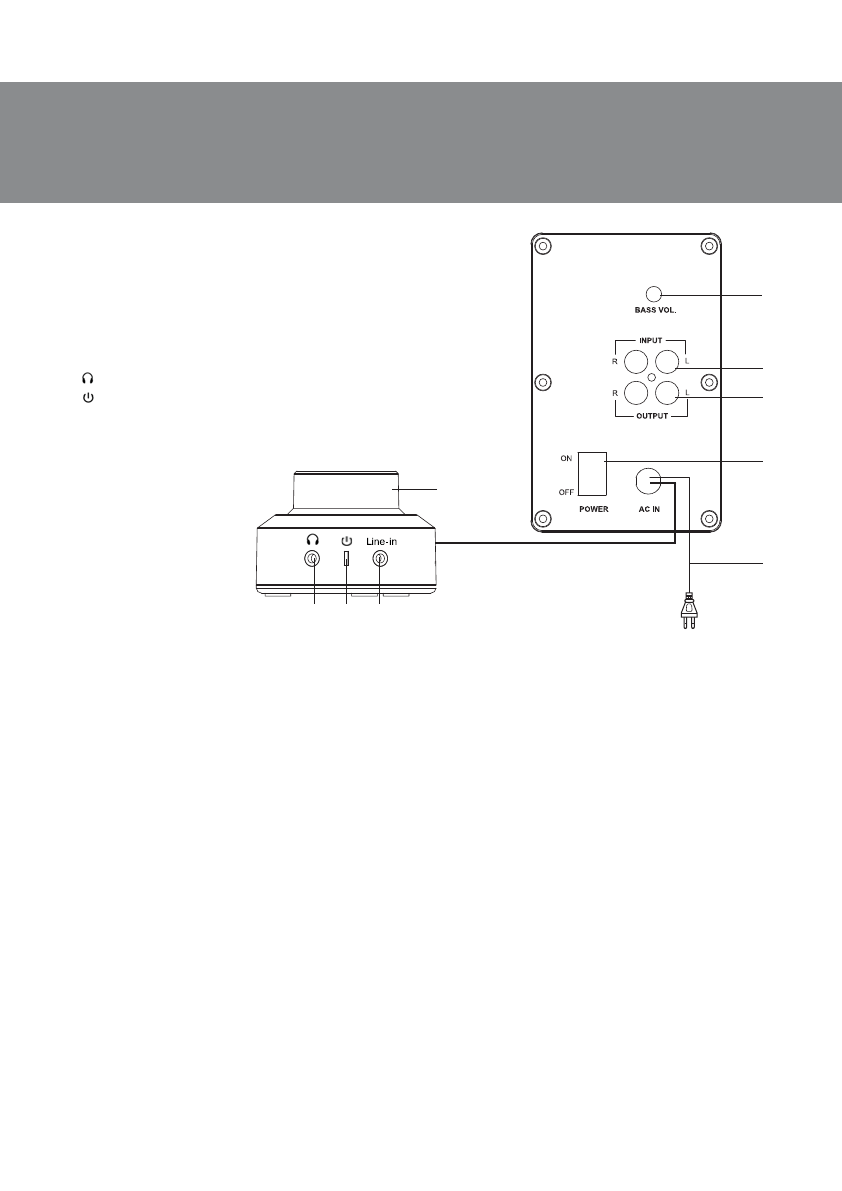

Fig. 1. Subwoofer rear panel

Subwoofer rear panel and remote control

a

 BASS VOL: subwoofer volume control knob

b

 INPUT: audio source input

c

 OUTPUT: speaker output

d

 POWER:  power switch

e

 Power cord

f

 VOLUME:  wired RC volume control wheel

g

     : headphone jack

h

    : power LED

i

 Line-in: additional audio source input

5. PREPARATION AND OPERATION

Speaker placement

•

 Place the speakers symmetrically to the listener at least one meter away. The subwoofer emits

non-directional sound, therefore it can be located in any place of the room where it sounds the best.

•

 Place MSS far away from monitors and TV sets, as insigni

fi

cant image distortion in these super-

sensitive devices is possible.

Installation and operation

MS-306 Multimedia Speaker System can be connected to virtually any audio source: DVD/CD, PC

sound card, laptop, etc. (see Fig. 2).

Note! Before connecting, make sure that the device is unplugged.

•

Connect the audio cables built into the speakers into the OUTPUT

c

 jack on the subwoofer rear

panel (see Fig. 2).

•

Insert the RCA jack of the included signal cable into the subwoofer INPUT

b

 jack and connect the

opposite mini-jack of the signal cable into the LINE OUT port of the PC sound card or OUTPUT jack

of your

МР

3/ CD player (see Fig. 2). To connect the MSS to a DVD-player or TV, use 2RCA to 2RCA

stereo signal cables (not included).

•

Insert the power cord plug

e

 (see Fig. 1) on the rear panel of the subwoofer into the socket.

•

Adjust the master volume level and subwoofer volume level to their minimum by turning control

knobs VOLUME

f

 and BASS VOL

a

 respectively counterclockwise until stop.

ENG

15

Operation Manual

MS-306
