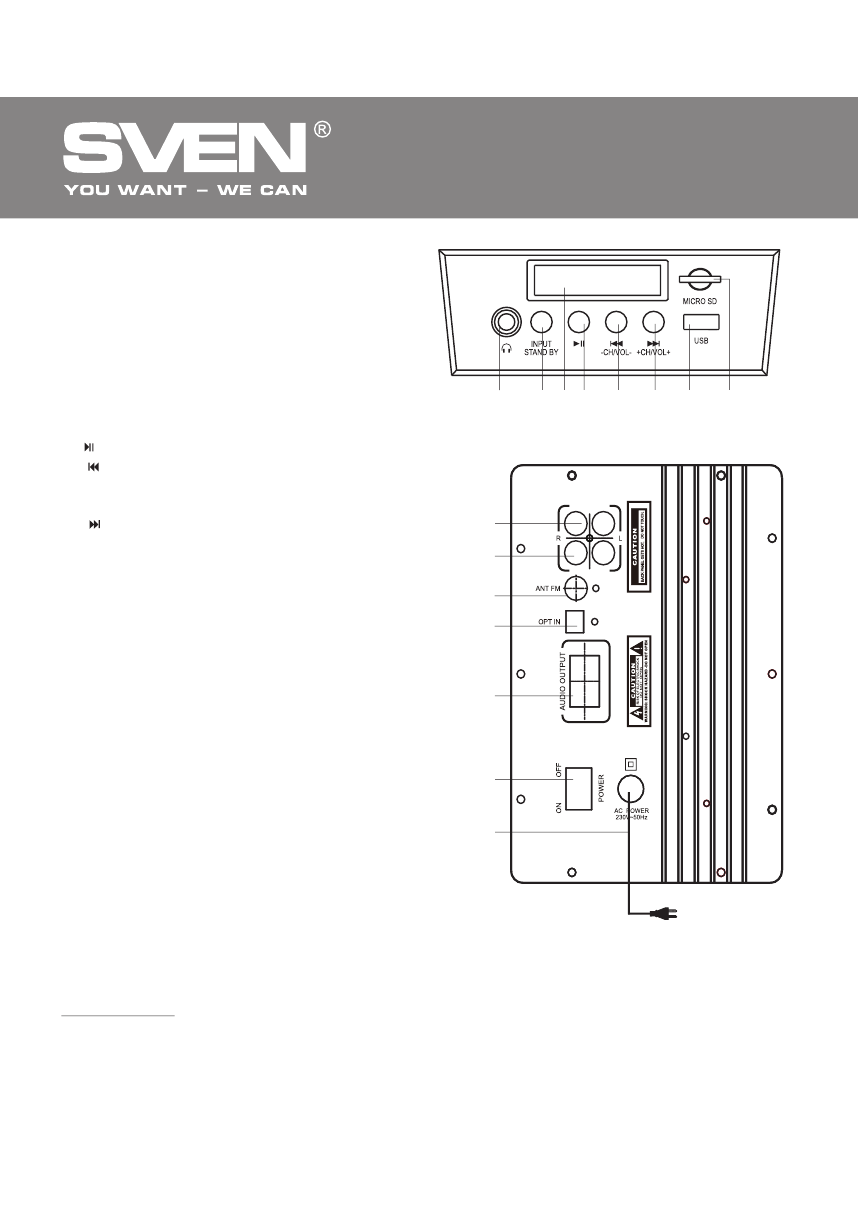

Fig. 1. Control panel

a

b cd e

•

 Remote control

•

 MDF speaker cabinets

Active speaker panels

a

 Headphone jack

b

 INPUT/ STANDBY : Standby power button

(long press);

source input button: BT/AUX1/AUX2/ USB/SD

(short press)

c

 LED display

d

    : Play / Pause (in the Player mode)

e

      / -CH/VOL-: previous track (in the Player mode);

previous station* (in the Tuner mode) volume down

button;

f

      / +CH/VOL+: next track (in the Player mode); next

station*  (in the Tuner mode) volume up button;

g

 USB: slot for a USB flash device** containing МР3,

WAV audio files

h

 MICRO SD: slot for SD/MMC cards** containing МР3,

WAV audio files

i

 AUX1 INPUT: line input jack 2 x RCA

j

 AUX2 INPUT: line input jack 2 x RCA

k

 ANT FM: radio antenna input jack

l

 OPT IN: optical cable input jack (

only for MC-20

model

)

m

 AUDIO OUTPUT: passive speaker input jack

n

 POWER ON/OFF:  power switch

o

 Power cord

l

m

k

j

i

Fig. 2. Active speaker rear panel

AUX1 INPUT

AUX2 INPUT

n

o

f g

h

* The frequencies are switched if stations have been preset in the memory.

**  The  storage  device  must  be  formatted  as  FAT,  FAT32.  Memory  cards  SDHC  class  10  or  less  can  be

used. Connection of external hard disks other than USB flash drive is not recommended, otherwise it can

causethe MSS damage.
