ENG

2.1 Multimedia Speaker System

16

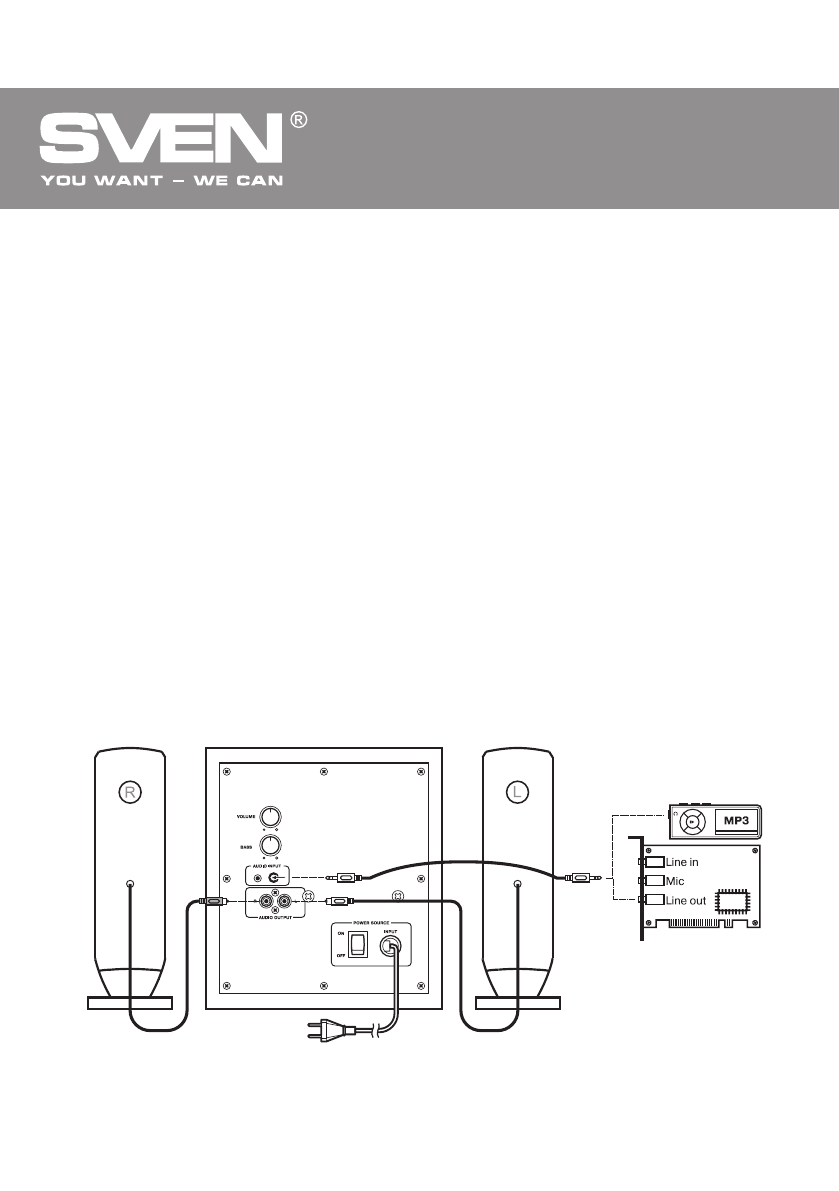

Fig. 2. Wiring diagram

5. PREPARATION AND OPERATION

Speaker placement

•

 Place the satellites symmetrically to the listener at the distance not less than one meter.

•

  Place  MSS  far  away  from  monitors  and  TV  sets,  as  insignificant  image  distortion  in  these  super-

sensitive devices is possible. We recommend that the subwoofer should be placed on the table.

Installation and operation guide

WARNING! All components should be switched off before connection.

•

 Connect the built-in audio cables to the audio outputs

e

 on the rear panel of subwoofer (see Fig. 2).

Note that the red RCA-jack on the right speaker should be connected to subwoofer red terminal and the

white RCA-jack of the left speaker – to the white terminal of the subwoofer AUDIO OUTPUT  R/L.

•

 Mini-jack of stereo signal cable should be inserted to input connector AUDIO INPUT of subwoofer, and

another mini-jack of cable should be plugged in Ø 3.5 mm LINE OUT port of the computer sound card or

audio output of player as shown above.

•

 Plug the power cord

f

 (fig. 1) on the rear panel of the subwoofer into an outlet.

•

 Set the master volume to minimum, turn VOLUME

a

 counterclockwise until it stops.

•

  Turn  the  power  switch  POWER

d

  (position  ON)  on  the  rear  panel  of  the  subwoofer.  Power  LED  will

illuminate.

•

 Turn on your audio source.

•

 To adjust the master volume, turn VOLUME

a

. By turning the knob clockwise volume level increases,

while by turning counter-clockwise it is reduced.

•

 To adjust the bass level, turn BASS

b

. By turning the knob clockwise the bass level increases, while

by turning counter-clockwise it is reduced.

Notes: If you don’t use MSS for a long time, make sure the device is turned off, check POWER

switch and unplug the power cord. Use the soundcard Line&Out port to improve sound quality.
