TREBLE PHONES

BASS

POWER

b

a

c

d

e

i

h

g

f

30 W

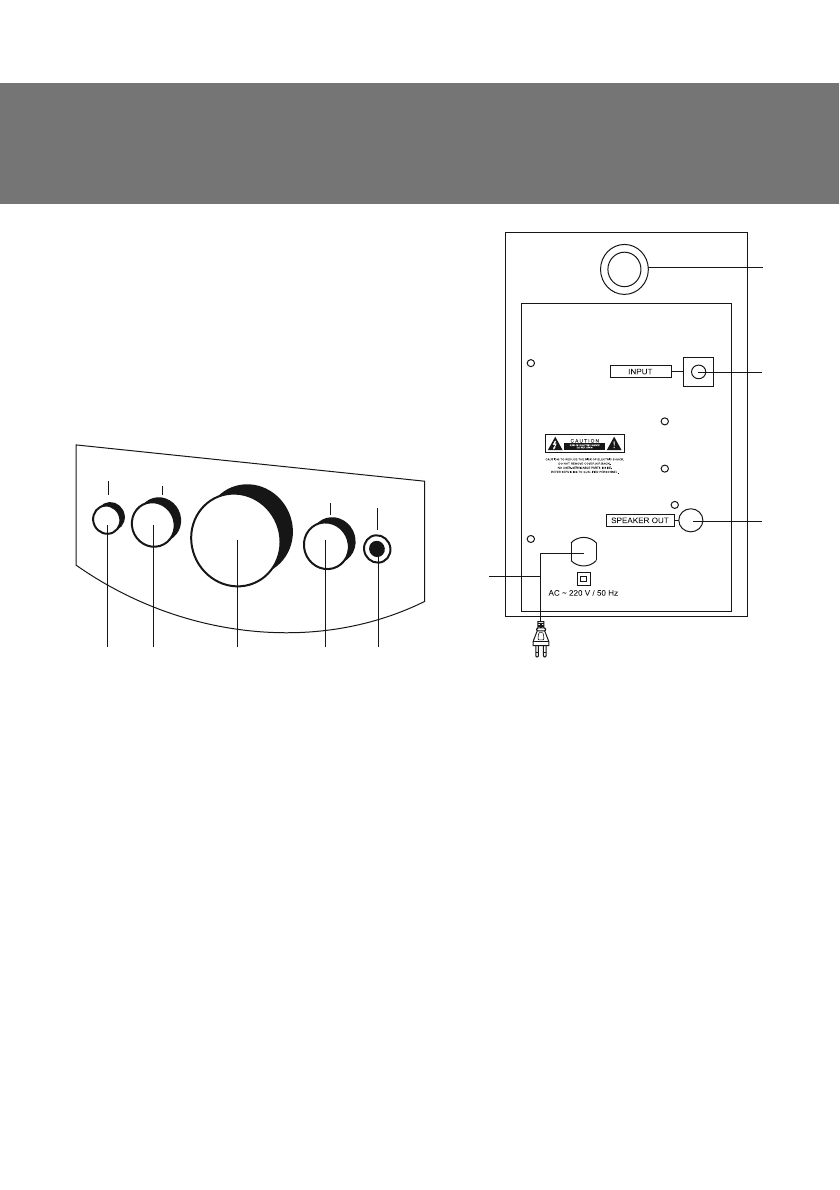

Fig. 2. Active speaker rear panel

Fig. 1. Control panel

Active speaker panells

a

 POWER: power switch

b

 BASS: bass control  knob

c

 Master volume control knob

d

 TREBLE: treble control knob

e

 PHONES: headphone jack

f

 Bass re

Ԝ

ex port

g

 INPUT: audio source input

h

 SPEAKER OUT: passive speaker output

i

 Power cord

5. PREPARATION AND OPERATION

Speaker placement

•

 Place the speakers symmetrically to the listener at least one meter away.

•

 The MSS has a bass re

Ԝ

ex port on the rear panel, therefore the MSS should be installed at the

distance of 20-30 cm from a wall or other obstacle.

•

 Place MSS far away from monitors and TV sets, as insigni

ԛ

cant image distortion in these su-

persensitive devices is possible.

MSS Connecting

CF-11/CF-21 Multimedia Speaker Systems can be connected to virtually any audio source: DVD/

CD, PC sound card, etc. (see connection diagram, Fig. 3).

•

Before connecting, make sure that the MSS is unplugged. Then connect the speakers to each

other via the audio cable built into the passive speaker (see connection diagram).

•

Insert the signal cable mini-jack (included) into the audio input (INPUT) of the MSS and connect

the other mini-jack of the signal cable to LINE OUT port of the PC sound card or to a music player.

•

To connect the MSS to a DVD/CD-player, it is necessary to use a mini-jack (Ø 3.5 mm) to 2RCA

stereo signal cable (not included) or the mini-jack (Ø 3.5 mm) to 2RCA adapter (included). Insert

RCA jack of the signal cable into the audio output (OUTPUT) of a DVD/CD-player and the mini-jack

of the signal cable into the audio input (INPUT) of the MSS.
