e

i

h

g

f

a

b

c

d

BASS

TREBLE PHONES

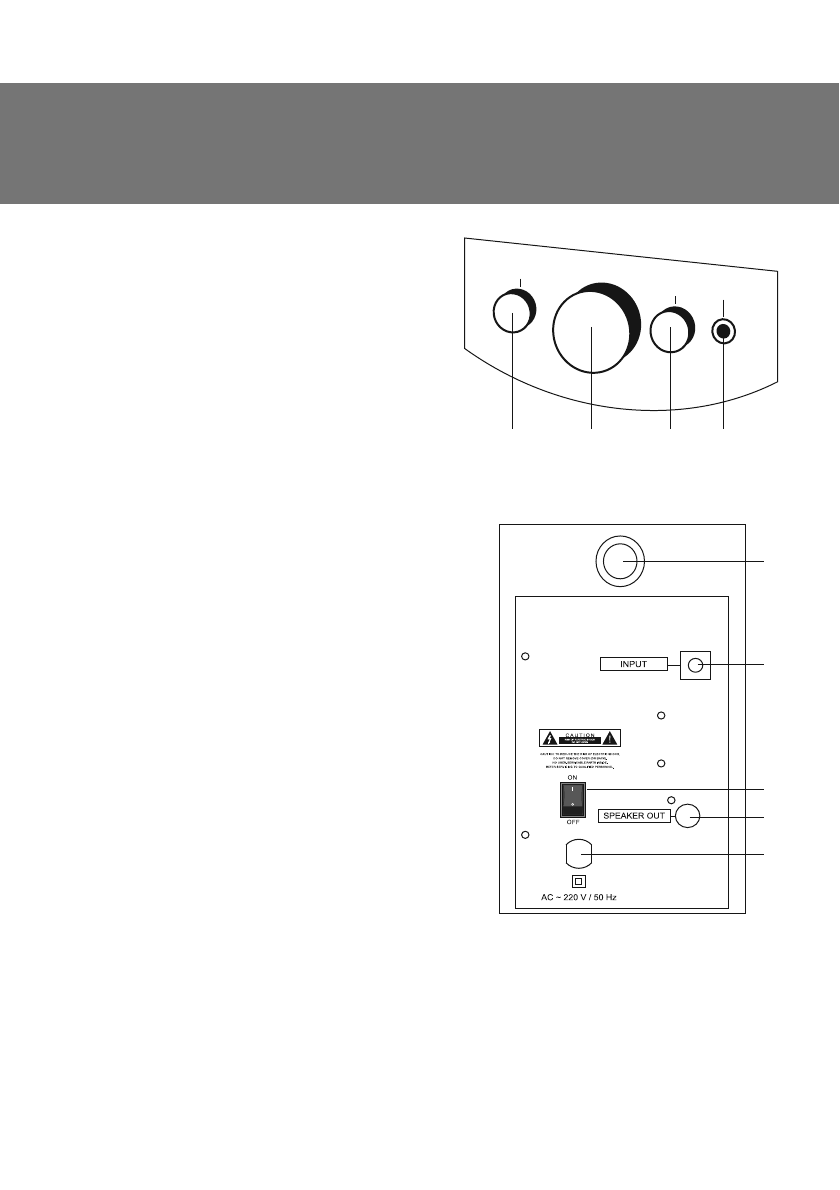

Control panel

a

 BASS: bass control  knob

b

 VOLUME: volume control knob

c

 TREBLE: treble control knob

d

 PHONES: headphone jack

e

 Bass re

Ԝ

ex port

f

 INPUT: audio source input

g

 ON/OFF:  power switch

h

 SPEAKER OUT: passive speaker output

i

 Power cable connection jack

5. PREPARATION AND OPERATION

Speaker placement

•

 Place the speakers symmetrically to the listener at

least one meter away.

•

 The MSS has a bass re

Ԝ

ex port on the rear panel,

therefore the MSS should be installed at the distance of

20-30 cm from a wall or other obstacle.

•

 Place MSS far away from monitors and TV sets, as

insigni

ԛ

cant image distortion in these supersensitive

devices is possible.

MSS Connecting

CF-15/CF-25 Multimedia Speaker Systems can be

connected to virtually any audio source: DVD/CD, PC

sound card, etc. (see connection diagram, Fig. 3).

•

Before connecting, make sure that the MSS is un-

plugged. Then connect the speakers with each other

via the audio cable built into the passive speaker (see

connection diagram).

•

Insert one mini-jack of the signal cable (included)

into the audio input (INPUT) of the MSS and connect

the second mini-jack of the signal cable to the LINE

OUT port of your PC sound card or to your music

player.

•

To connect the MSS to a DVD/CD-player, it is neces-

sary to use a mini-jack (Ø 3.5 mm) to 2RCA stereo

signal cable (not included) or the mini-jack (Ø 3.5 mm)

to 2RCA adapter (included). Insert the RCA-jack of the

signal cable into the audio output (OUTPUT) of your

DVD/CD-player and the mini-jack of the signal cable

into the audio input (INPUT) of the MSS.

Fig. 2. Active speaker rear panel

Fig. 1. Control panel

ENG

15

Operation Manual

cF-15/cF-25
