ENG

21

Operation Manual

C2-15

8. INSTALLATION AND OPERATION

C2-15 Multimedia Speaker System can be connected to virtually any audio source: DVD/CD, PC

sound card, etc. (see

fi

g. 4 below).

•

Before connecting make sure that speaker system is switched o

ff

. Then connect built-in acoustic

cables to outputs on the rear panel of subwoofer (see connection diagram above).

•

To connect speaker system to audio source, stereo signal cable mini-jack to mini-jack (stereo

jack Ø 3,5 mm) should be used. Insert one end of the cable into the audio input on the rear panel of

subwoofer, and insert the other end of the cable into audio source input (stereo jack Ø 3,5 mm).

Notes.

Sound is directly dependent on accuracy and reliability of the cable connections.

Recommended to use cables that are supplied complete with speakers.

•

To connect speaker system to CD/DVD-players, stereo signal cable mini-jack (Ø 3,5 mm) to

2*RCA (not included) should be used; its RCA jacks should be connected to outputs of

DVD/CD-players. If such a cable is not available, use adapter mini-jack (Ø 3,5 mm) to 2*RCA

(optional).

•

Insert plug of power cable

j

  (see

fi

g. 2) on rear panel of subwoofer into the socket.

•

Shift POWER

On/O

ff

 switch into ON position

i

 on rear panel of subwoofer.

•

Adjust volume level to its minimum by turning VOLUME control knob

b

 on the front panel of

subwoofer counterclockwise as far as it would go.

•

Adjust volume level by turning VOLUME control knob

b

 on the front panel of subwoofer or by

pressing buttons VOL+ or VOL-

d

 on remote control (see

fi

g. 3).

•

Adjust treble level by turning TREBLE control knob

c

 on the front panel of subwoofer or by

pressing buttons TRE+ or TRE-

b

 on remote control.

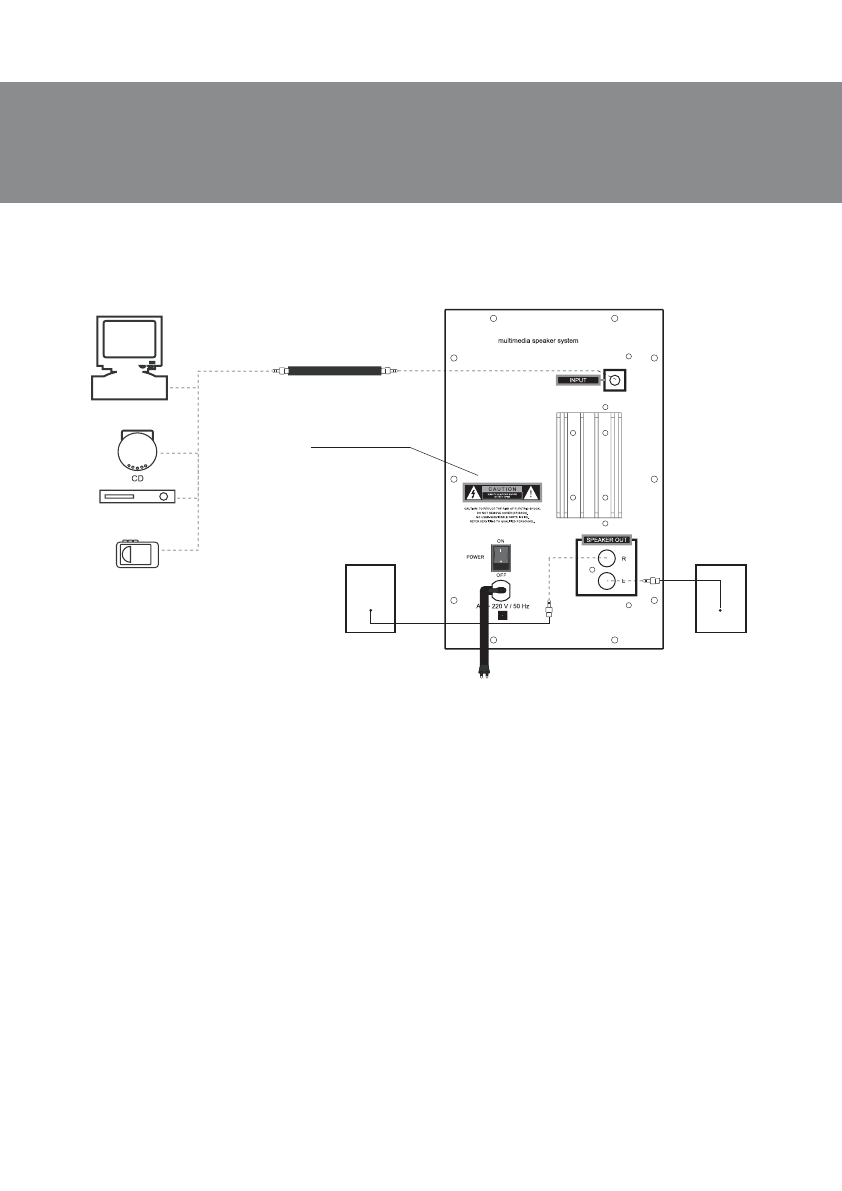

Fig. 4. Connection diagram

C2-15

signal cable

 mini-jack

 to mini-jack Ø 3.5 mm

DVD/CD/MP3, TV

subwoofer

rear panel

left

speaker

right

speaker

COMPUTER

PLAYER
