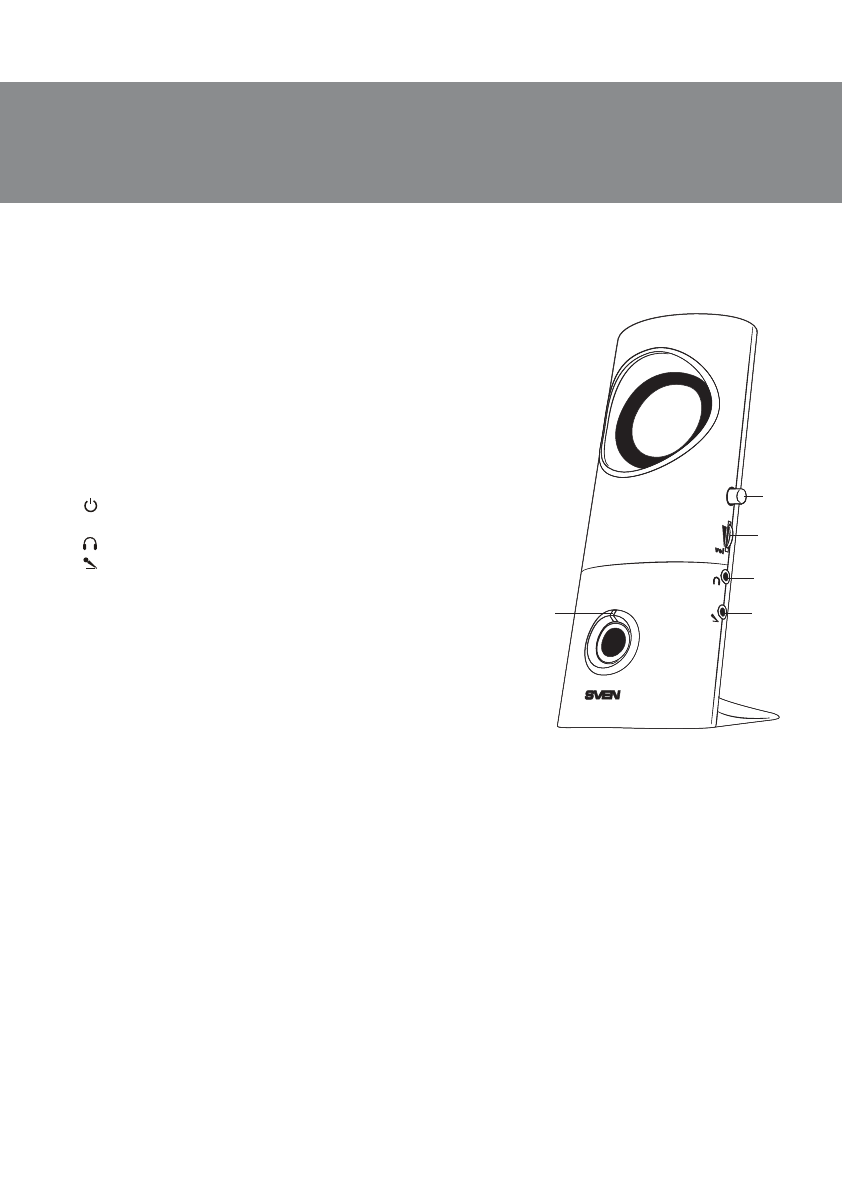

Fig. 1. Control panel

b

c

d

e

a

Special features

•

 U.S.S. (Ultra Sound System) – built-in bridge ampli

fi

er ensures output power 4 times higher than

that of AB class ampli

fi

ers

•

 Power supply via USB-port of a PC, laptop or 5V DC power supply

•

 Volume control

•

 Power LED

•

 Speaker system is compatible with PCs, DVD/Media-players, mobile

devices and other sound sources

•

 Headphone jack Ø 3.5 mm

•

 Microphone jack Ø 3.5 mm

•

 Magnetic shielding

•

 Plastic case of speakers

Control panel

a

     : power switch

b

 VOL: volume control knob

c

     : headphone jack

d

     : microphone jack

e

 Power LED

5. PREPARATION AND OPERATION

Speaker placement

•

 Place speakers symmetrically to the listener at a distance

not less than one meter.

•

 Place MSS far away from monitors and TV sets, as insigni

fi

-

cant image distortion in these supersensitive devices is

possible.

MSS Connecting

SVEN 245 USB Multimedia Speaker System can be connected to virtually any audio source:

DVD/CD, PC sound card, etc. (see connection diagram, Fig. 2).

•

Before connecting, make sure that MSS is unplugged. Plug built-in ampli

fi

ed speakers signal

cables with mini-jack 3.5 mm: audio cable (mini-jack green) – to the audio sound source and

microphone cable (mini-jack pink) – to the microphone jack (see connection diagram, Fig. 2).

•

Plug connector of the USB-power cable to the USB-port of the PC, laptop or the 5V DC power

supply.

Notes:

•

To connect MSS to CD/DVD/TV-players, stereo signal cable mini-jack to mini-jack and

adapter RCA to mini-jack (not included) should be used.

•

Set volume level to minimum by turning VOLUME control knob

b

 counterclockwise until it stops.

•

Turn on PC power supply, shift POWER  switch

a

, power LED

e

 will illuminate.

•

Turn on audio source.

•

Adjust volume level by turning VOLUME control knob

b

.
